Ideal 12,000 lb TP12KSC-DX, 2 Post Car Lift - ALI Certified
Ideal TP12KSC-DX Is your current car lift leaving you feeling like you're using a stone age tool? The iDeal TP12KSC-DX 2-post car lift is here to propel your shop into the future. This champ boasts a 12,000 lb lifting capacity and ALI certification, making it the perfect solution for tackling even the most demanding heavy-duty lifting tasks. Your technicians will be racing to get to work when they found out about the symmetric arms that ensure balanced lifting, the rubber door guards and spin-up lift pads to protect your customers' prized possessions. And let's not forget the direct drive push cylinders and single point lock release - this lift practically operates itself.
Rated for 12,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
What sets this two post lift apart within its category is the combination of rated capacity, documented specifications, and the safety engineering detailed below -- the kind of details worth checking before you commit to any two post lift.
Key Benefits
ALI certified
New low profile swing arm design
New adjustable height swivel pads
New 2.6″ & 5″ stackable height adaptors
New single point cable lock release
New MET UL / CSA certified Duro power unit
Rubber door guards
Direct drive push cylinders
Features Explained
Highlights that shape this lift's day-to-day performance:
ALI certified

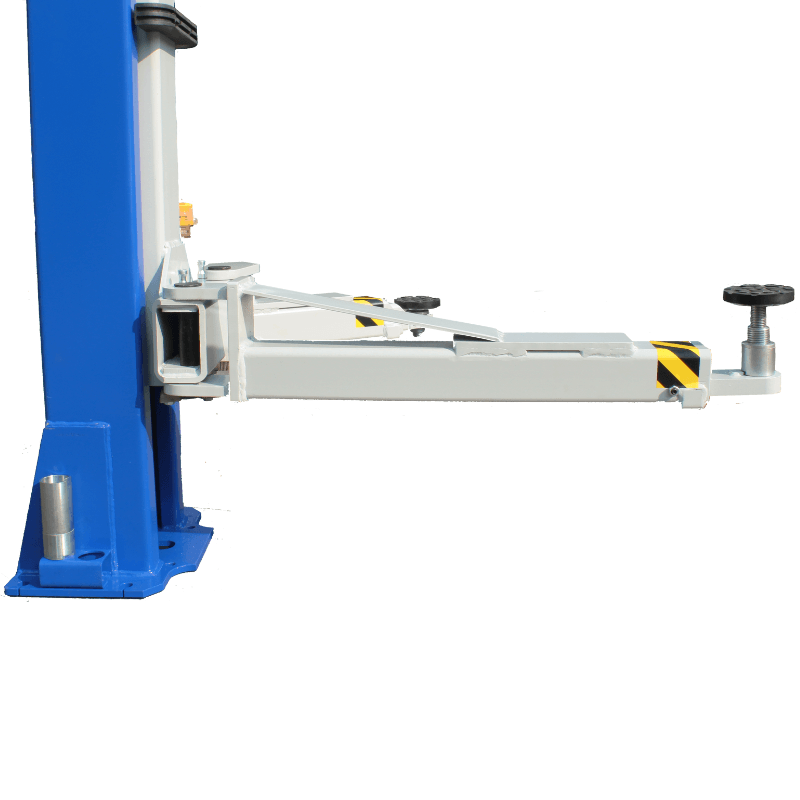

New low profile swing arm design
New adjustable height swivel pads
New 2.6″ & 5″ stackable height adaptors
New single point cable lock release
New MET UL / CSA certified Duro power unit
Ideal Applications
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Compatible Vehicles
Based on its specifications, this two post lift is suited to passenger cars, SUVs, and light-to-medium trucks up to its 12,000 lb rated capacity. Vehicles near the upper weight limit should be checked against their actual curb weight before use.
Technical Specifications
Specification | Details |
Lift model | TP12KSC-DX |
Capacity | 12,000 lbs |
Height overall | 168-1/2″ |
Width overall with power unit | 151-5/16″ |
Max lift height | 75″ |
Width between columns | 122″ |
Min. pad height | 4-7/8″ |
Drive thru clearance | 109″ |
Lifting speed | 50 seconds |
Short arm reach (min / max) | 37-5/8″ – 57″ |
Max load per arm | 3,000 lbs |
Ship weight | 2,295 lbs |
Power | 220V – 20 AMP – 1 PH |
Concrete Requirements | Minimum of 4.25"-3000psi |
What's Included
Stackable adapters included
Safety Features
New single point cable lock release -- included as a built-in safeguard for safe day-to-day operation.
Heavy duty arm restraint system -- included as a built-in safeguard for safe day-to-day operation.
Installation Requirements
Concrete requirements: Concrete Requirements: Minimum of 4.25"-3000psi
Electrical requirements: 220V – 20 AMP – 1 PH
Installation difficulty: Professional installation is recommended for anchoring, alignment, and safety-system checks.
Estimated installation time: Not specified by the manufacturer; your installer can provide a time estimate based on your site.
Shipping Information
Warehouse pickup: due to this item's size, it ships free of charge to the nearest available warehouse pickup location rather than to a home or business address.
Full details, including which locations are available, are covered in our Shipping Policy.
Questions before you order? Call +1 (623) 850-3643 or email support@triumphliftsus.com.
Warranty
This lift is covered by the manufacturer's warranty. Specific terms and coverage details are provided with your order -- keep your invoice on hand, as it's required for any warranty service or claims.
Why Buy From Our Store
Free nationwide shipping, including free forklift delivery on qualifying orders
Secure checkout on every order
Expert customer support from a real, US-based team
Manufacturer warranty honored on every lift we sell
Fast order processing and shipment
Reliable service from a family-owned business
Trusted, name-brand automotive lift equipment
Responsive support by phone, text, or email
Frequently Asked Questions
What is the weight capacity? This two post lift is rated for 12,000 lb.
Do I need special electrical work? See the Motor/Power specification above; an electrician can confirm compatibility with your setup.
Can I install this myself? Professional installation is recommended for correct anchoring and safety-system function.
Is there a warranty? Yes, covered by the manufacturer's warranty; terms are included with your order.
How does shipping work? This item ships free to the nearest warehouse pickup location due to its size -- see our Shipping Policy.
What's included? See the What's Included section above for the full list.
How much does it cost? Current pricing is $3,646.5 -- the price shown at checkout is always accurate.
Can I return this if it doesn't fit my space? Yes, our standard 30-day return policy applies; buyer covers return shipping.
More About This Two Post Lift
Choosing the right two post lift comes down to matching capacity, build quality, and installation requirements to how it will actually be used. The Ideal 12,000 lb TP12KSC-DX, 2 Post Car Lift - ALI Certified is a two post lift, which lifts from the vehicle's frame or designated lift points -- a space-efficient choice that leaves the floor beneath the vehicle completely open for full underbody access. With a 12,000 lb capacity, it's built as serious car lift equipment rather than a bargain compromise. As auto lift equipment, it's engineered for repeatable, dependable performance rather than occasional light-duty use -- the kind of durability that separates a dependable automotive lift from equipment that cuts corners on materials or safety engineering. Combined with free nationwide shipping (or warehouse pickup on oversized models), a manufacturer warranty on every unit, and support from a real US-based team, this two post lift is a well-rounded choice for a first home garage bay or a working shop floor.
Ready to add reliable, professional-grade lifting capacity to your garage or shop? Order the Ideal 12,000 lb TP12KSC-DX, 2 Post Car Lift - ALI Certified today, backed by free shipping or warehouse pickup, a manufacturer warranty, and support from our team from checkout through delivery.
